Aplikasi

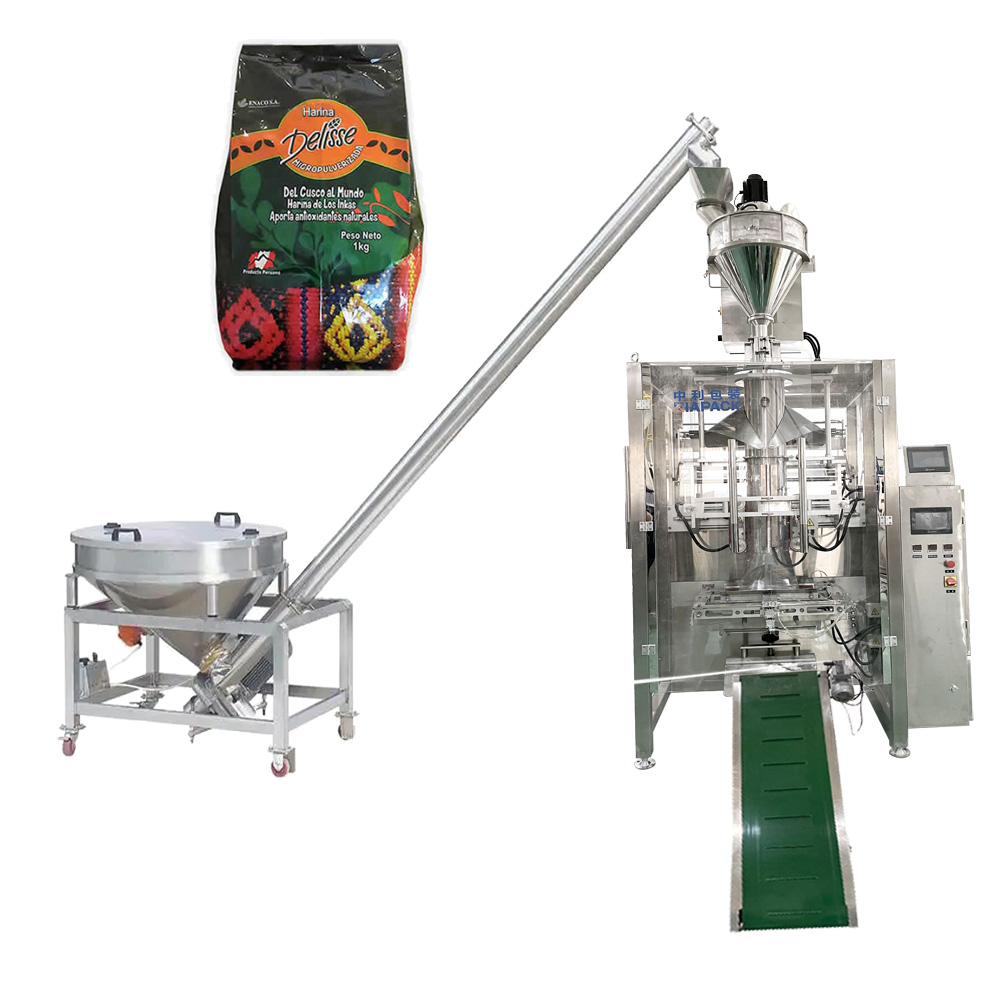

Vertical Formulir Isi Seal With Packer Filler Packing System kanggo produk bubuk, kayata susu, glepung, rempah-rempah, farmasi, ground ground, bubuk coklat dll.
Fitur
Simens PLC controller, Neumatics brand festo
Antarmuka layar tutul kanggo operasi sing gampang.
Sistem kontrol suhu cerdas.
Servo drive kanggo film narik sistem.
Sensor foto kanggo tandha mata otomatis nglacak.
Tanggal printer lan film nyocogake sistem sinkron digunakake.
Servo motor drive screw, hopper pamisah bisa gampang mbukak lan resik.
Spesifikasi Teknis
| Daya | 5 KW | Werna film | Maks. 900mm |
| Ukuran (L * W * H) | 1600 * 1530 * 2110 mm | Jembaré maksimal saka Film | 900 mm |
| Bobot | 850 KG | Tegangan | 110V / 220V, 50HZ / 60HZ |
| Kacepetan | 5 ~ 20 Bags / Menit | Fungsi | Sealing, Wrapping |
| Bag Width | 250 ~ 400mm | Warranty | 1 taun |
| Panjang Bag (Max) | 500 mm | Kualitas materi | 201/304 Stainless Steel |
| Ngisi jarak | 15 L | Kontrol | PLC |
| Tipe Kemasan | Tas bantal, tas gusseted, tas ngisor datar | ||
| Diameter Gulungan Film | Diameter luar ≤350mm.Inner diameter 75 mm | ||
| Packaging Material | OPP, CPP OPP, CE PET, PE NILO, PE PE | ||
| Tipe sealing tas | Tas bantal standar, tas bantal sing nganggo gussetd, kantong ngisor lan luwih akeh | ||
| Aplikasi | Kimia, Komoditi, Komoditi, Pangan, Mesin & Perangkat Keras, Medis, Tekstil | ||
| Piranti opsional | Tanggal coder, Alat punching lubang (Pinhole, Lubang bulat, Lubang kupu), Nyalin perangkat kontrol tas, Alat pengisi udara, Alat buang air. Alat lancip, Alat inflasi nitrogen, tas Gusset | ||

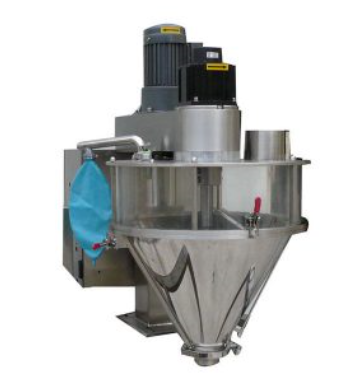

| Model | Pengisi tegal |
| Range abot | 10 ~ 5000g (Sekrup auger kanggo siji bobot bobot) |
| Katrangan bobot (g) | Range <100g, nyimpang: 0,5 ~ 1g |
| Range: 100 ~ 5000g, nyimpang: 0,5 ~ 1% | |
| Ngisi kacepetan | 10 ~ 50 tas per menit |
| Material hopper | 50L |
| Tegangan | 220V / 380V |
| Bobot reged | 200Kg |
