15kg pelet kayu vffs tas mbentuk ngisi mesin sealing bagging

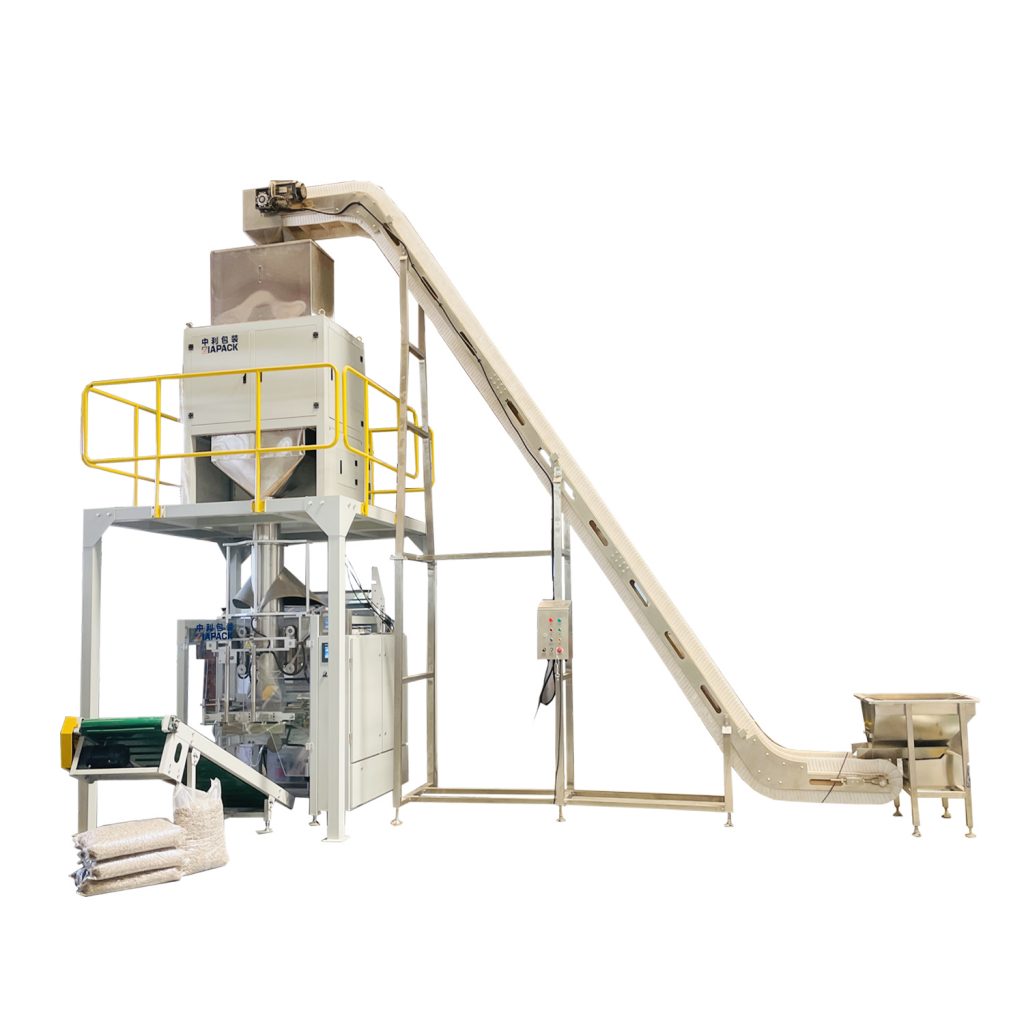

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Pambuka:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Parameter Teknis:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Syarat udara tekan: 0.6Mpa 0.65m³ / min

Reel outer diameter: 450mm

diameteripun inti inti: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Fitur utama lan karakteristik:

• Kanthong sing akeh: Kantong bantal lan Gusset.
• Kacepetan dhuwur: 20-50 tas / min
• Gampang operate: pengontrol PLC lan layar tutul warna, indikasi kesalahan ing layar tutul.
• Gampang nyetel: mung kira-kira 10 menit kanggo ngganti pouch sing beda-beda.
• Kontrol frekuensi: kacepetan bisa disetel kanthi frekuensi konversi ing jangkoan.
• Otomasi High: unmanned ing proses timbang lan packing, weker mesin kanthi otomatis nalika gagal.
• Safety lan Hygiene:
• Ora ana film, mesin bakal weker.
• Weker mesin lan mandeg nalika tekanan udara ora cukup.
• Pengawal keamanan kanthi safety-switch, alarm mesin lan mandheg nalika pengawal safety dibukak.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

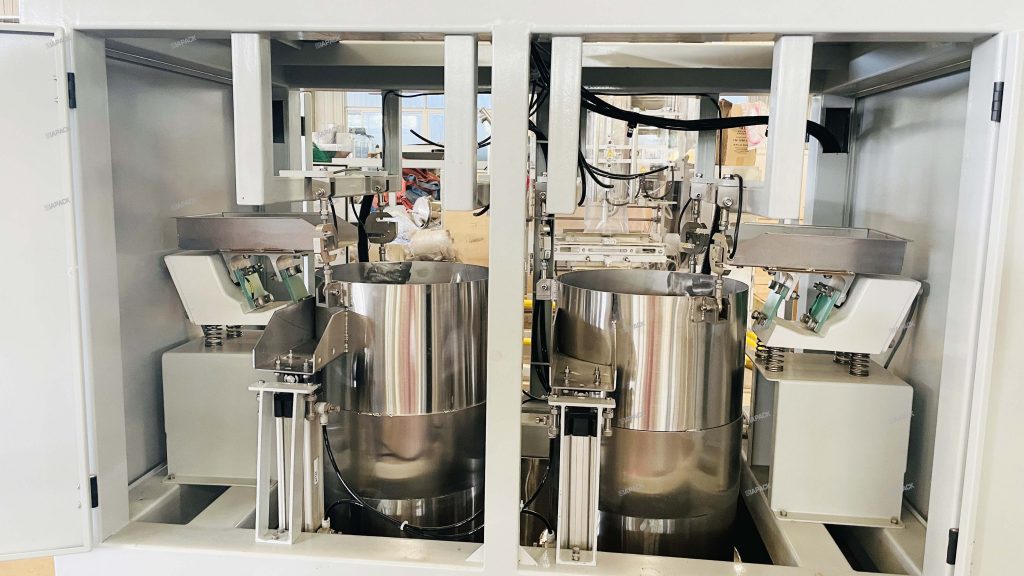

• ZLC2-15k double bucket weighing machine

  Pambuka:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Fitur:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
