Pambuka:

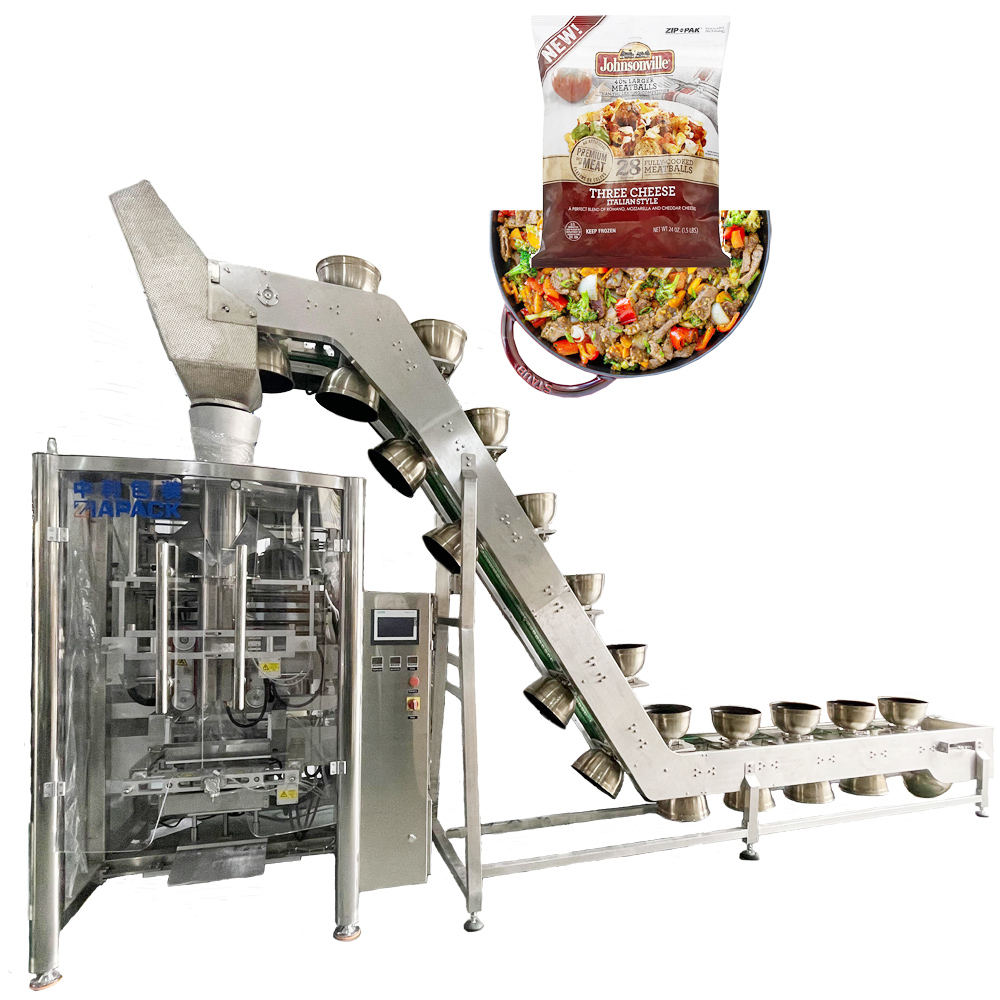

This machine unit is special design for packing Leafy vegetables and othe pre-cooked food with soup.Use the bowl bucket for transfer the product and match with ZL520/720 Vertical bag forming filling sealing packaging machine .Widely use for packaging Lettuce chinese cabbage cauliflower and so on
Proses Pangerjaan:
Feeding - Conveying - Weighting - Forming (Isi - Sealing) --Finish Products Conveying
Fitur
1. Layar layar Inggris lan Cina, iku gampang kanggo operate.
2. Fungsi sistem komputer PLC luwih stabil, lan luwih gampang kanggo nyetel paramèter apa wae.
3. Bisa nyithak sepuluh dhaptar, lan gampang kanggo ngganti parameter.
4. Sever film motor gambar, sing apik kanggo lokasi akurat.
5. Sistem kontrol suhu indhektor, presisi akurat ± 1 ° C.
6. Horisontal, vertikal kontrol suhu, cocok kanggo macem-macem film komplit, PE film kemasan materi.
7. Packing diversifikasi tipe, sealing bantal, tipe berdiri, meninju dll.
8. Pembuatan tas, penyegelan, pengepakan, tanggal pencetakan ing siji operasi.
9. Kahanan omah sing tenang, kurang swara
CE - Certificate of Conformity, Certificate of Incorporation (available as an option)
Data Teknis
| Model | ZL720 |
| Tipe Bag | Bantal tas, Gusseted tas / Flat tas ngisor |
| Mode Operasi | Intermittent |
| Kacepetan | Nganti 100 tas / menit |
| Panjang Bag | 80-380 mm |
| Bag Width | 80-350mm |
| Lebar Film Reel | 730 mm |
| Ketebalan Film | 0,04-0.12mm |
| Reel Outer Dia | Ф450mm |
| Reel Inner Dia | Ф75mm |
| Tegangan | AC380V / 50HZ, 3 phase utawa saben kabutuhan customer |
| Konsumsi Daya | 5KW |
| Required Air Compressed | 0.6MPa, 0.36 M3 / Min |
| Ukuran | 1600x1217x1680mm (L x W x H) |
| Bobot | 800KG |
Opsional Item:
| Fitur Opsional | Pilihan / Deskripsi |
| Pola Penutup | Pola checkerboard |
| Pola garis datar | |
| Pola khusus liyane | |
| Sachet Cut-off Shape | Flat cut-off |
| Serration cut-off | |
| Ngubungake tas tutup | |
| Luh Kedudukan | Kanggo nggawe kedudukan luh karo wangun tartamtu |
| Kode Printing | Nemtokake tipe coder dibangun |
| Printing kode pita | |
| Printing inkjet kode | |
| Nggulung Lubuk | Kanggo nggawe bolongan hang kanthi wangun tartamtu |
| Blanjanan Ngumpulake Piranti | Kanggo ngumpulake bledug nalika dosis |
| Inflating & Deflating | Inflasi Air / Nitrogen |
| Deflating udara | |
| Pembungkus Piranti Film | Kanggo njamin gerakan bener film kemasan |
